0.6-1.6MPa Horizontal Flue Gas rRecirculation System Organic Heat Carrier Boilers With Automatic Control System

Organic heat carrier boiler introduction

There are two types of structure: verticalYY) and horizontal(YYW)The boiler surface adopts the tighteninq-tube-arrangement with spiral structure.

Organic heat carrier boiler (heat conduction oil boiler) is the use of organic heat carrier or heat medium oil as a heat transfer medium, among with hot oil circulation pump forced medium liquid loop, to transfer heat to heat equipment, then return to the furnace to the heating boiler. Organic heat carrier boiler has the advantages of high temperature, low pressure, heating temperature, uniform accurately. Is a kind of safety, high efficiency and energy saving heating equipment. The system has high heat utilization, convenient operation and maintenance.

Fuel applicable

Natural gas, LNG, CNG, light diesel oil, both natural gas and light diesel, city gas, heavy gas, biogas, etc.

Demands of our clients are capable for us to meet.

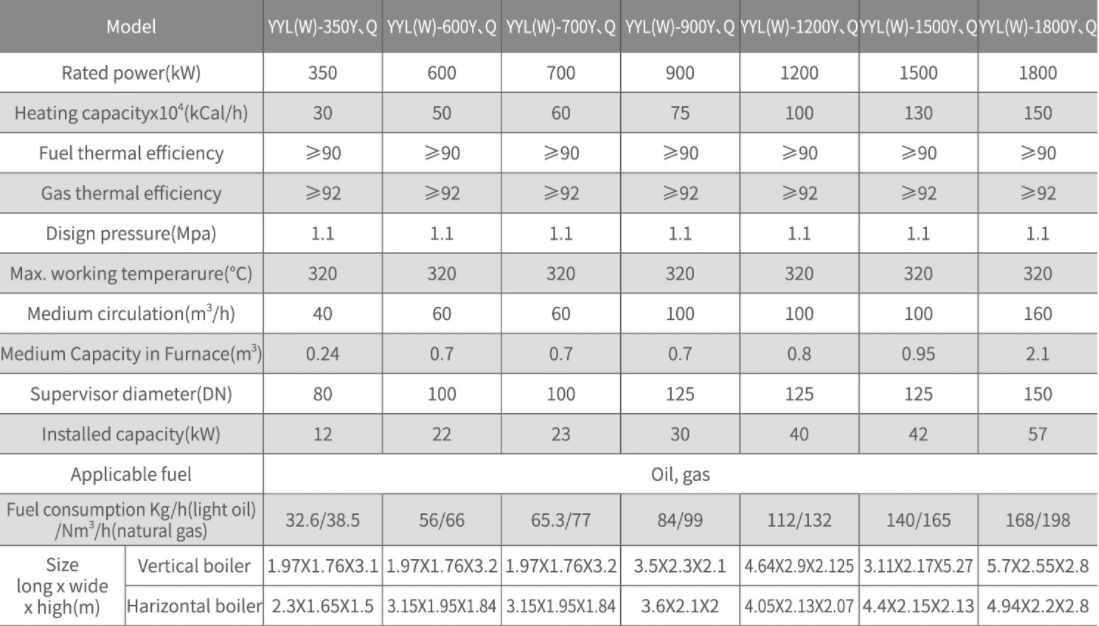

Below is part of small boiler parameter for reference.

The chimney adopts the three-pass arrangement.

An air preheater or a water/steam transformer is arranged behind the boiler, reducing the temperature, improving the thermal efficiency of the boiler.

The quick opening door or the observation door is equipped for the convenience of checking the internal inspection and maintenance.

The burner

Imported name brand fuel combustion machine, safe and reliable, full automatic control.Scope of supply includes: usually the burner native, valve, regulating valve, filters, leak detection, fan, etc. According to the actual supply contract.

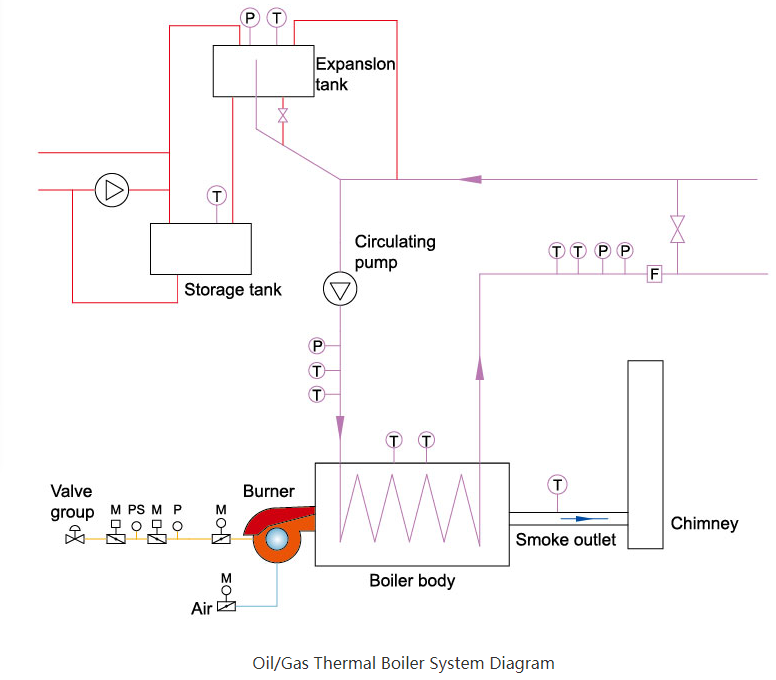

The circulatory system

Boiler circulating pump filling pump oil filter points ShangQi expansion tank of oil and gas storage tank sampling cooler.

Waste heat system (energy saving)

Boiler flue gas waste heat recovery according to factory waste heat utilization, matching of waste heat steam boiler, air heat exchanger, a variety of forms such as hot water economizer, heat according to customer's specific requirements to choose the optimal energy saving plan optimization combination, or a variety of general boiler thermal efficiency is higher than 96%.

Electrical control and instrumentation

Can choose according to need of conventional control, PLC touch screen control, DCS control technology. Through the mobile Internet technology to achieve human-computer interaction and remote data sharing. Choose the famous brand electric control components, safe and reliable.

Flue gas recirculation system (FGR)

According to the requirements of the boiler to use environmental emissions, configuration of FGR flue gas recirculation system, low nitrogen (NOx) emissions standard requirements.

Zhangjiagang Hua Dong Energy Technology Co., Ltd. is a high-tech enterprise specialized in producing all kinds of stainless, carbon and alloy steel tubes and pipes, steel plates which are widely used in the field of boiler&heat exchanger, energy, petrochemical, mining, food, paper, gas and fluid industry. And we have passed the attestations including ASME, TUV, Grade A, ISO9001, EN12952, EN10216, SO3834.

The company is the subsidiary of Zhangjiagang Hua Dong Boiler Co., Ltd, which is the most leading boiler and boiler parts manufacturer in China with a history of 35 years and annual turnover of 110 million U.S.A. dollars. Our products have been exported to over 30 countries like United States, Australia, Vietnam, Pakistan, Albania, Cambodia, India, Indonesia, South Korea, the Philippines, Turkey, Saudi Arab, Germany, Russia, Chile, Syria, Thailand, Bangladesh, France, Algeria, Mongolia and Singapore, Cuba, Iraq, Italy, Spain, Japan, Yugoslavia, Sri Lanka, the Czech republic, kyrgyzstan, Canada, Malaysia, the United Kingdom and so on.

Location:

Our company locates in Zhangjiagang city which is a port city, and is only 120km far away from Shanghai, 60km far away from Suzhou and 60km far away from Wuxi.

The traffic is very convenient.

Staff:

About 600 employees, including 150 technicians.

Strategy:

We strive to provide the top grade quality products and best services to the customers. Keep developing the new products which are energy saving, environment protective and keep investing for the new equipments and new technologies.

Supplying ability:

10000MT per month for the tubes and pipes

5000MT per month for the steel plates

Global cooperation partners:

Covanta, Foster Wheeler, RCR Energy, ALSTOM, POSCO, Dongfang Electric, Shanghai Electric, China Huaneng, China Guodian, China Datang Corporation, Huaguang Boiler, Haerbin Boiler, Dongfang Boiler, Hangzhou Boiler, Bao Steel, Tisco, Shagang Steel......

Our products' quality is ensured by advanced, excellent facilities and manufacturing equipment. We have introduced many advanced processing and inspection equipments, including plasma cutting machine, NC drilling equipment, automatic welding system, welding equipment and real-time online imaging detection system, etc., which successfully ensure excellent quality of our products.
