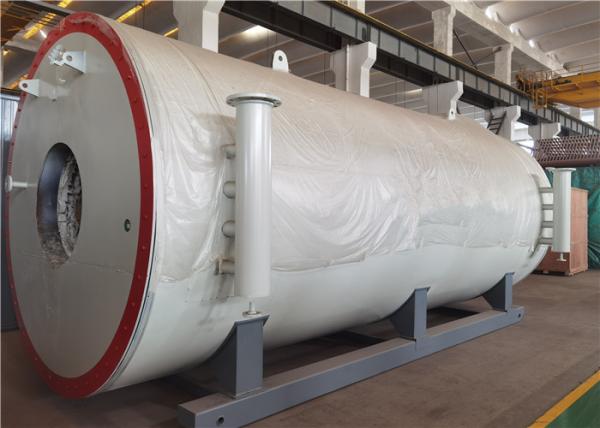

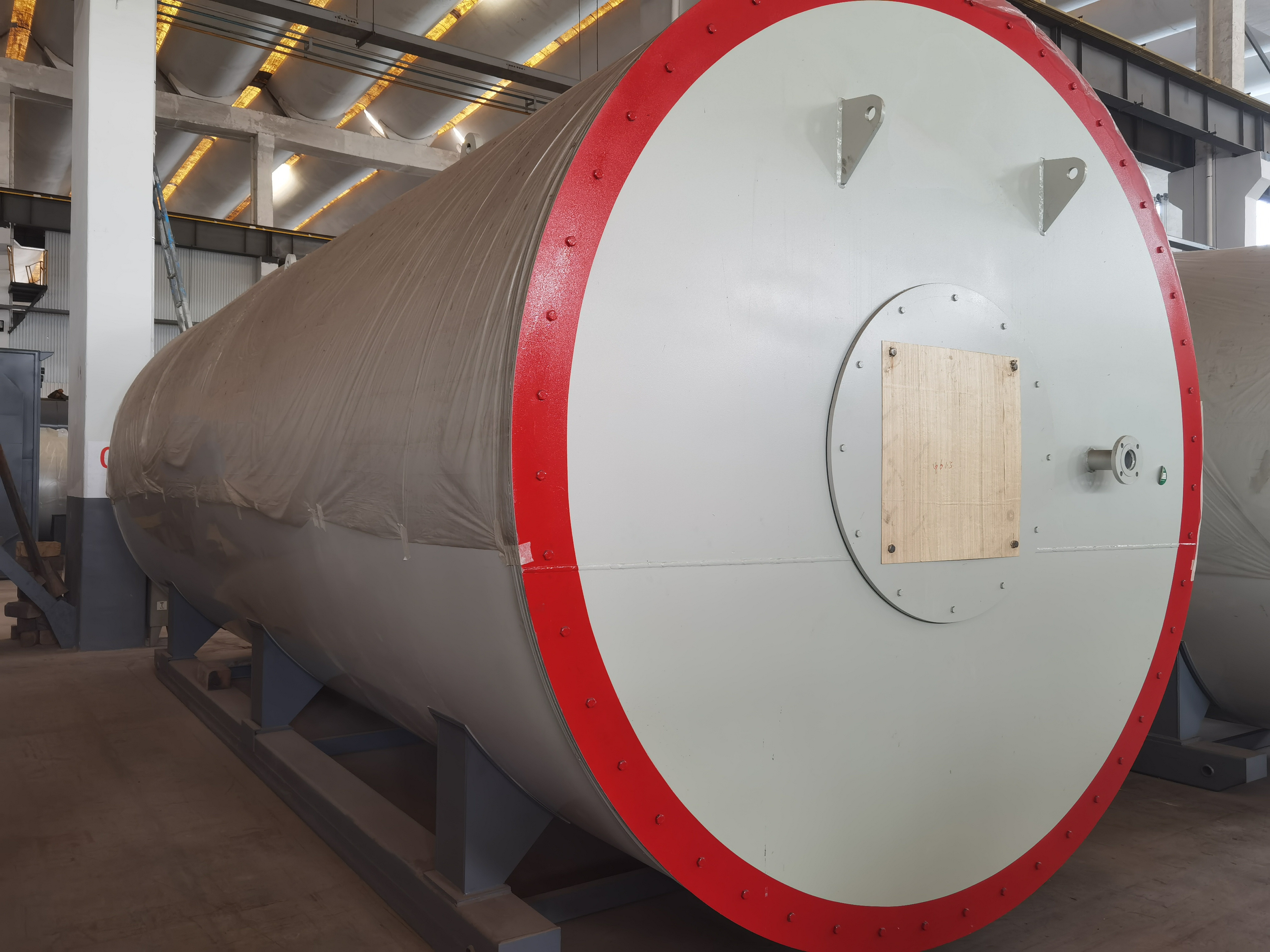

YYL Type ASME Horizontal Oil Gas Boiler Tightening Tube Organic Heat Carrier Boiler

Product Type

YYL(W) type vertical(horizontal) type fuel oil(gas) heat boiler

Product Range

Rated thermal power: 0.7MW - 29MW (60xl04Cal/hr - 2500xl04Cal/hr)
Design pressure: 0.6MPa - 1.6MPa
Specific parameters are shown in Table6

Structural features of this series of products

• There are two types of structure: vertical(YYL) and horizontal(YYW).
• The boiler surface adopts the tightening-tube-arrangement with spiral structure. The chimney adopts the three-pass arrangement.
• An air preheater or a water/steam transformer is arranged behind the boiler, reducing the temperature, improving the thermal efficiency of the boiler.
• The quick opening door or the observation door is equipped for the convenience of checking the internal inspection and maintenance.

• Technical Parameter

  Cement production line capacity t/d		1000	2500	5000	10000
  Boiler inlet flow Nm3/h	Kiln(front)	60000	88000	243000	472000
  	Kiln(tail)	76000	170000	328000	612000
  Boiler inlet gas temperature℃	Kiln(front)	370	360	380	390
  	Kiln(tail)	360	320~360	330	330
  Rated evaporation t/h	Kiln(front)	5.8	7.25	24	50
  	Kiln(tail)	7.5	10~15.8	20~24.6	35.5
  Rated steam pressure Mpa	Kiln(front)	1.25	1.25	1.25	1.25
  	Kiln(tail)	1.25	1.25	1.25	1.25
  Rated steam temperature℃	Kiln(front)	340	330	350	360
  	Kiln(tail)	340	300~340	310	310
  Boiler structure	Kiln(front)	Vertical	Vertical	Vertical	Vertical
  	Kiln(tail)	Vertical	Vertical and Horizontal	Vertical and Horizontal	Vertical

Oil/Gas Thermal Boiler System Diagram

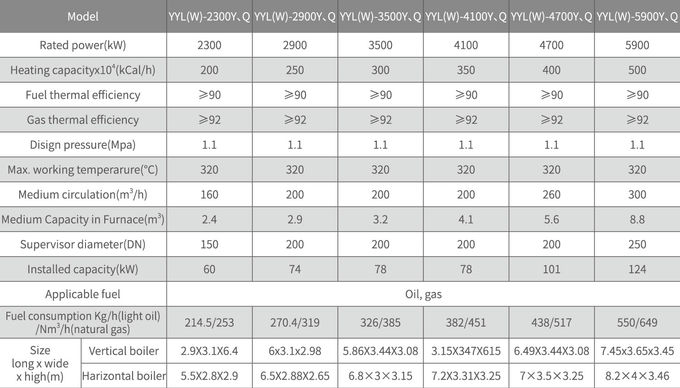

Parameters Table 6
