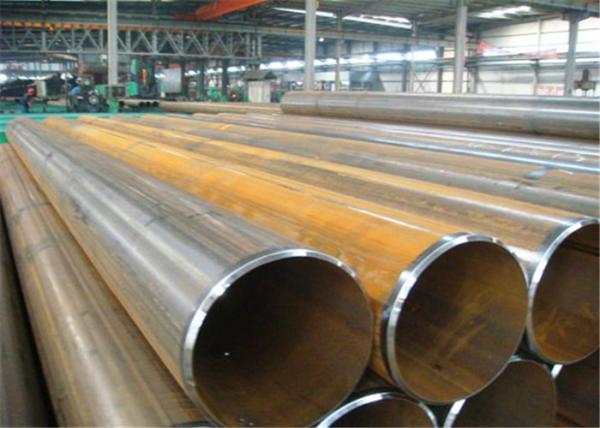

Cold Drawn Carbon Steel Welded Tube / Welded Steel Tube anti-corrosive

Specification of Thickness of Anti-corrosive Coating

Roduction Method

The cold drawn welded tube is produced by drawing ERW (electric resistance welded tube).During this process the sizing (wall thickness, inside and outside diameter), as well as weld integrity and surface finish is closely controlled to produce tube of the required size and mechanical property characteristics.

Main Date

Material: E355
Other Aviliable Material: E155 E195 E235 E275
Outer Diameter Range: 10-50mm
Wall Thickness Range: 1.5-8mm
t/D ≥ 0.2(Normal: t/D=0.1)
Standard: En10305-2
Process: Cold Drawn, Cold Rolling

Typical Specification

Chemical Component

Stength Yield

Delivery Condition:

1) +C No heat treatment after the final cold drawing process.
2) +LC After the final heat treatment there is a suitable drawing pass.
3) +SR After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere.
4) +A After the final cold drawing process the tubes are annealed in a controlled atmosphere.
5) +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere.

Advantage (compare with seamless cold drawn tube)

Better shape
Improved quality surface
Tight Excentricity and wall thickness tolerances (the eccentric
Tube more safety
Good toughness at low temperature
USA Market: 90% of the cylinder in the USA market are produced with welded tubes
Cost fix Lengths More Cheaper

Advantage of Our Company

Top class of welding line: SG/76 Enhanced High-precise High Frequency Welding Tube Production Line. The tube is of small outer diameter (D) and thick wall thickness (t): t/D≥0.2, and high size precision.

Application

Zhangjiagang Hua Dong Energy Technology Co., Ltd. is a high-tech enterprise specialized in producing all kinds of stainless, carbon and alloy steel tubes and pipes, steel plates which are widely used in the field of boiler&heat exchanger, energy, petrochemical, mining, food, paper, gas and fluid industry. And we have passed the attestations including ASME, TUV, Grade A, ISO9001, EN12952, EN10216, SO3834.

The company is the subsidiary of Zhangjiagang Hua Dong Boiler Co., Ltd, which is the most leading boiler and boiler parts manufacturer in China with a history of 35 years and annual turnover of 110 million U.S.A. dollars. Our products have been exported to over 30 countries like United States, Australia, Vietnam, Pakistan, Albania, Cambodia, India, Indonesia, South Korea, the Philippines, Turkey, Saudi Arab, Germany, Russia, Chile, Syria, Thailand, Bangladesh, France, Algeria, Mongolia and Singapore, Cuba, Iraq, Italy, Spain, Japan, Yugoslavia, Sri Lanka, the Czech republic, kyrgyzstan, Canada, Malaysia, the United Kingdom and so on.

Location:

Our company locates in Zhangjiagang city which is a port city, and is only 120km far away from Shanghai, 60km far away from Suzhou and 60km far away from Wuxi.

The traffic is very convenient.

Staff:

About 600 employees, including 150 technicians.

Strategy:

We strive to provide the top grade quality products and best services to the customers. Keep developing the new products which are energy saving, environment protective and keep investing for the new equipments and new technologies.

Supplying ability:

10000MT per month for the tubes and pipes

5000MT per month for the steel plates

Global cooperation partners:

Covanta, Foster Wheeler, RCR Energy, ALSTOM, POSCO, Dongfang Electric, Shanghai Electric, China Huaneng, China Guodian, China Datang Corporation, Huaguang Boiler, Haerbin Boiler, Dongfang Boiler, Hangzhou Boiler, Bao Steel, Tisco, Shagang Steel......

Our products' quality is ensured by advanced, excellent facilities and manufacturing equipment. We have introduced many advanced processing and inspection equipments, including plasma cutting machine, NC drilling equipment, automatic welding system, welding equipment and real-time online imaging detection system, etc., which successfully ensure excellent quality of our products.
